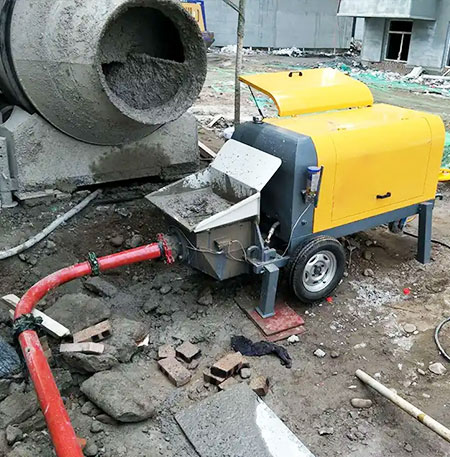

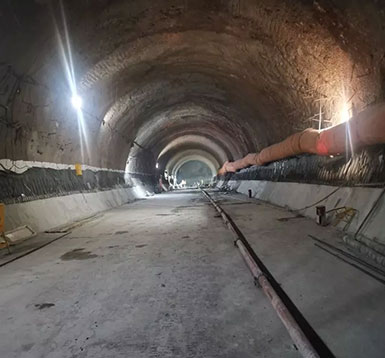

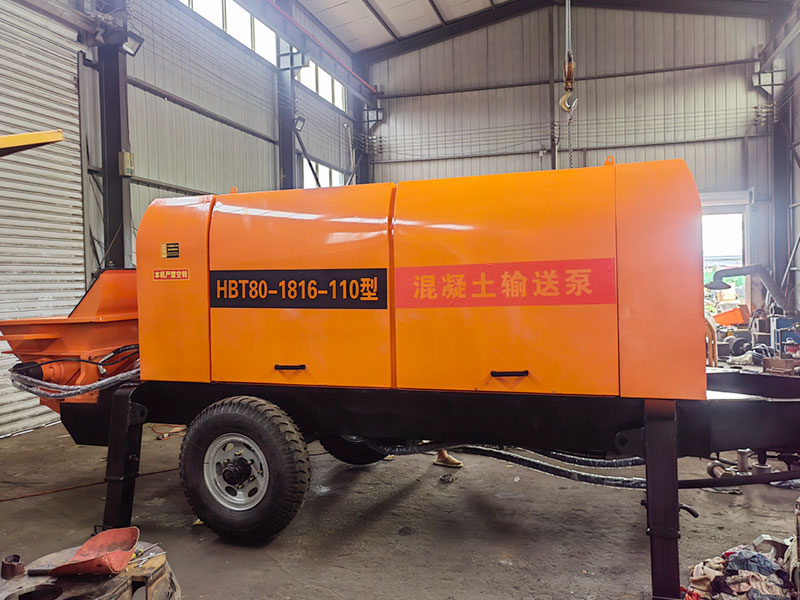

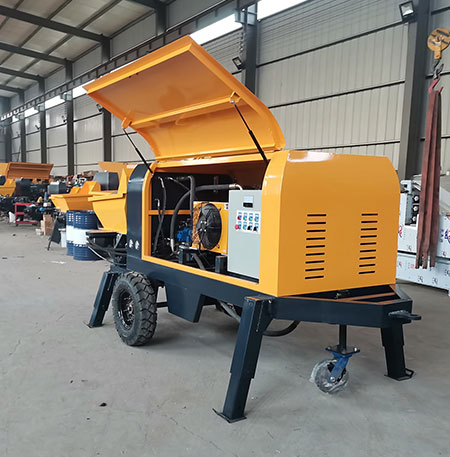

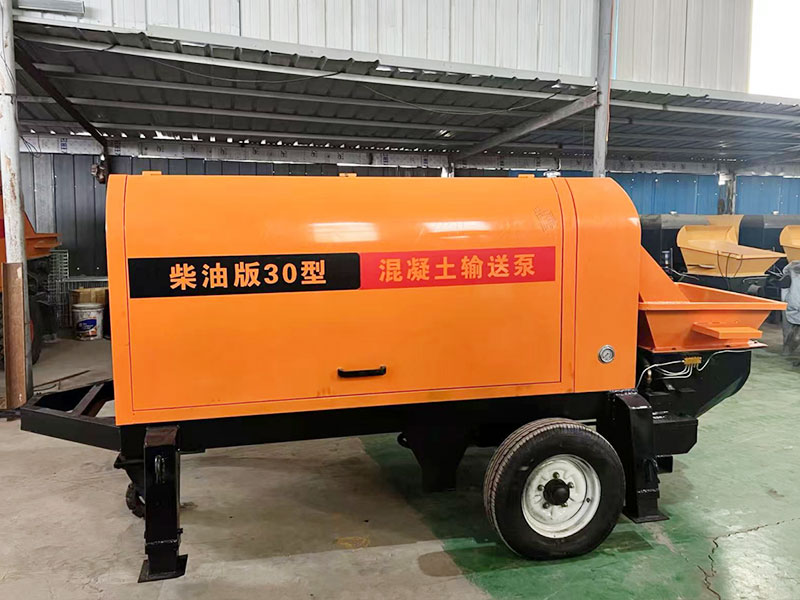

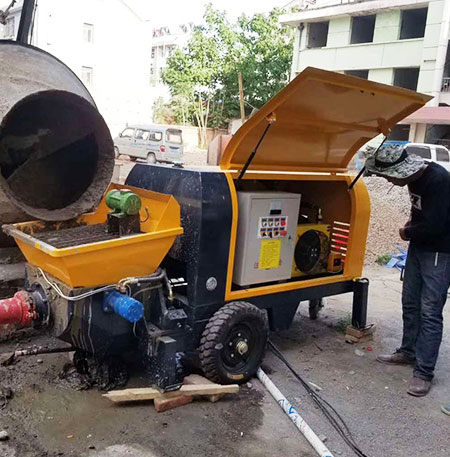

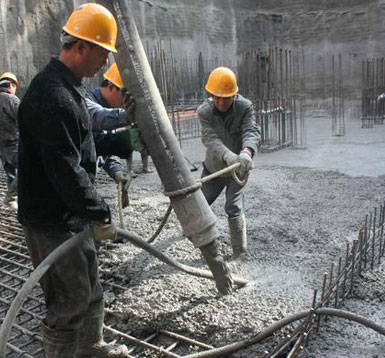

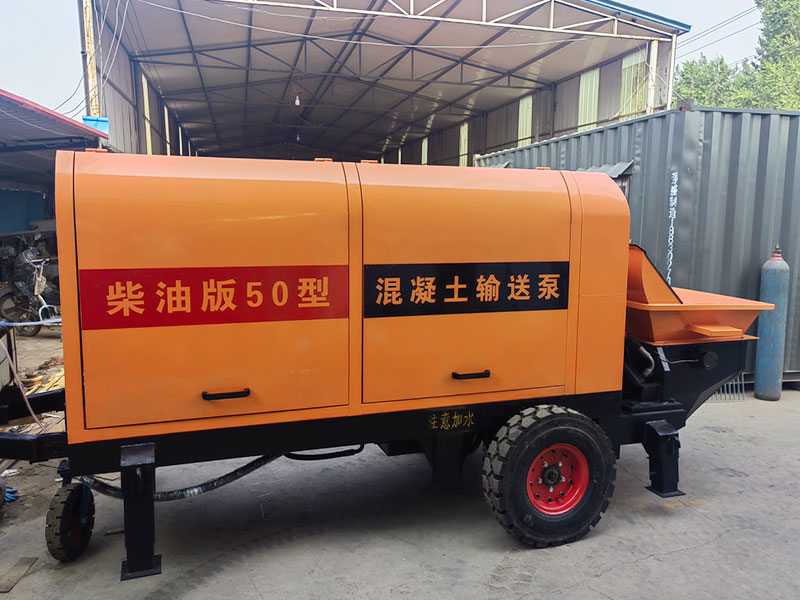

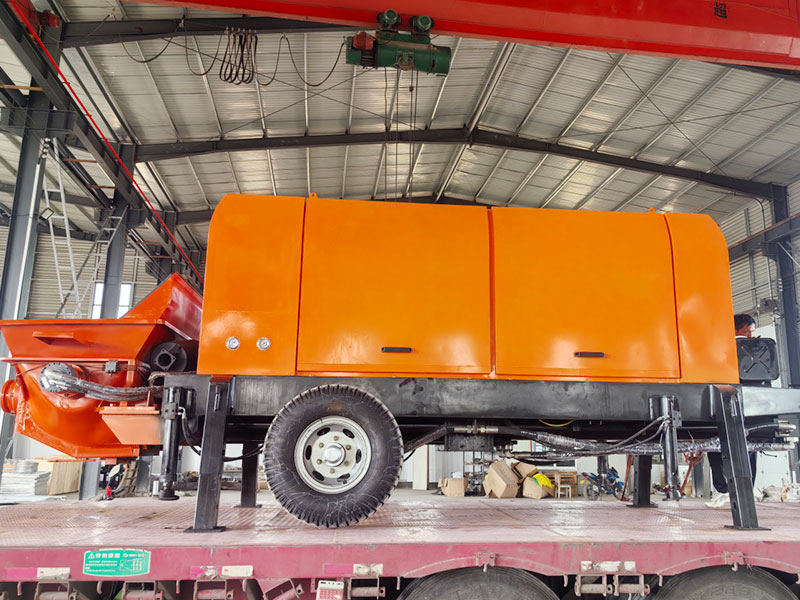

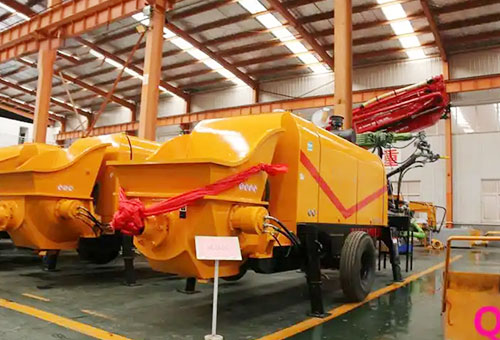

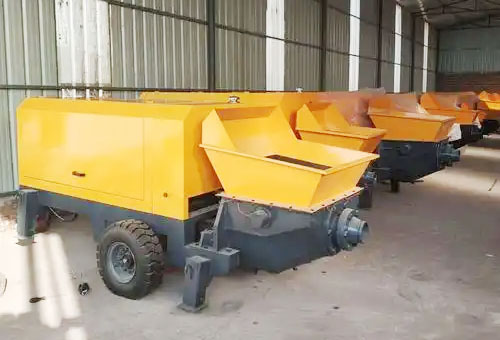

A concrete pump, also known as a concrete pump, consists of a pump body and a delivery pipe. It uses pressure to continuously transport concrete along a pipeline and is primarily used in building construction, bridge construction, and tunnel construction. It is primarily categorized as a gate valve concrete pump and an S-valve concrete pump. Another type of concrete pump is a truck-mounted pump, in which the pump body is mounted on a vehicle chassis and equipped with a retractable or flexing boom.
Send E-mail : Clara@yugongmachine.com

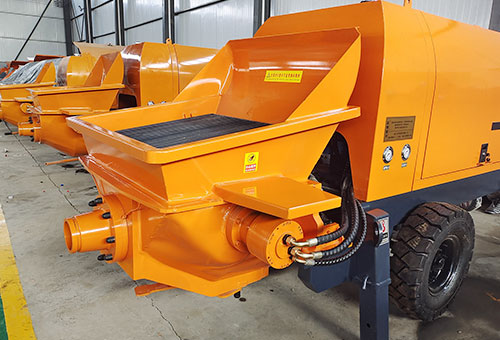

A high-angle hopper and high-pressure plunger pump achieve high pumping rates.
The three-circuit and dual-pump hydraulic system is stable, with forced air cooling for oil temperature control.
Supports high and low pressure switching, stepless displacement adjustment, and fully automatic lubrication to protect components.
PLC control simplifies circuitry, ensuring overall stable operation and guaranteed quality.

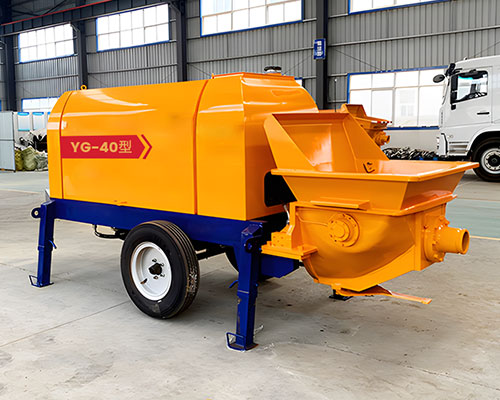

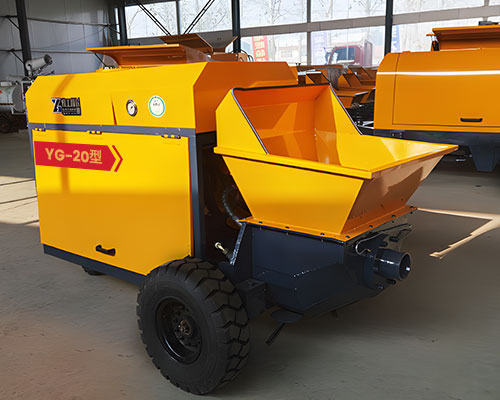

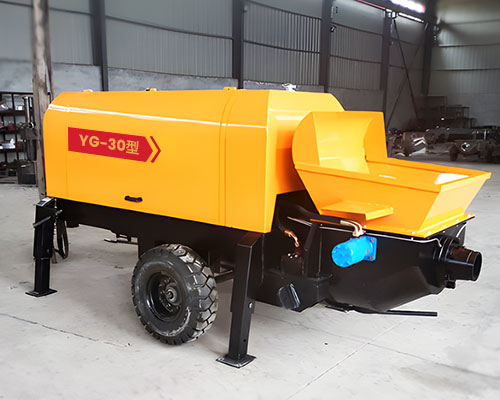

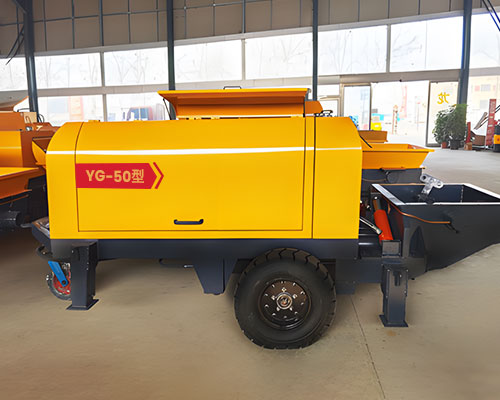

YG-20 | YG-30 | YG-40 | YG-50 | |
Work Efficiency | 8-12m³/h | 13-15m³/h | 20-25m³/h | 30-35m³/h |
Aggregae Size | 0-2cm | 0-3cm | 0-4cm | 0-4cm |
Vertical conveying Distance | 40-50m | 20-60m | 30-130m | 30-150m |
Horizontal conveying Distance | 80-100m | 50-150m | 50-350m | 50-500m |
Delivery pipe diameter | 80-100mm | 80-125mm | 80-125mm | 80-125mm |
Dimensions | 3200*1480* | 3800*1600* | 3880*1650* | 4300*1600* |
A unique high- and low-pressure valve switching device enables two delivery modes: high-pressure, low-displacement; and low-pressure, high-displacement.
Stepless pumping capacity adjustment and variable speed control technology enable simultaneous changes in concrete working conditions and displacement.
Fully automatic centralized lubrication ensures effective lubrication of components and extends the life of moving parts and sealing elements.
The system utilizes an advanced open-loop dual-pump, dual-circuit hydraulic system with independent operation of the pumping and reversing circuits, resulting in a simple and reliable system.

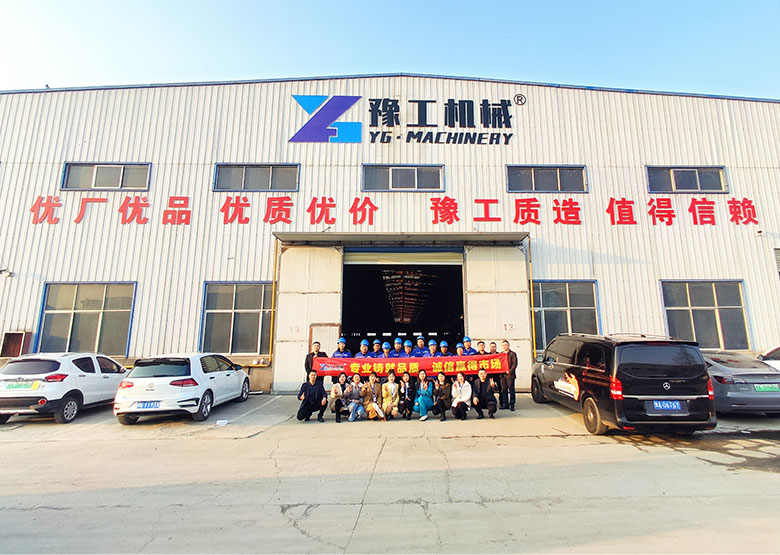

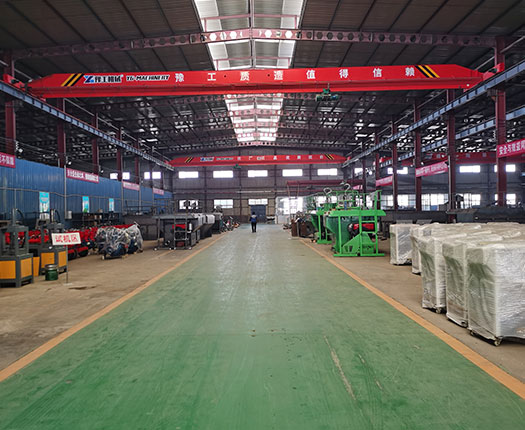

Henan Yugong Machinery Co., Ltd., established in 2005, boasts 20 years of industry experience, over 500 employees, and an 80,000 square meter modern factory. Yugong holds registered trademarks such as "Yugong Machinery" and is certified by ISO International Quality Management System, National AAA Integrity Enterprise, and SGS International Certification. The company employs professional product development and pre-sales and after-sales personnel. With its superior products and services, the company has earned the trust and recognition of over 2,000 customers, and its products are exported to over 100 countries and regions worldwide. Yugong always adheres to the customer-first principle, ensuring every customer receives satisfactory products and services.
