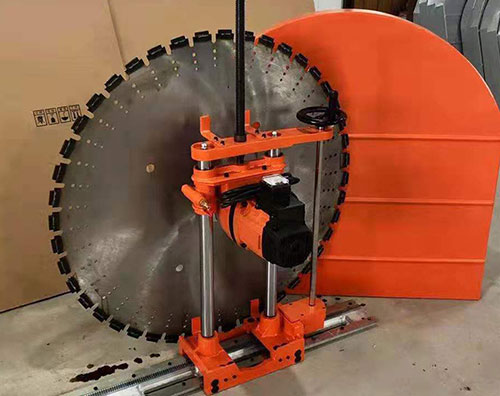

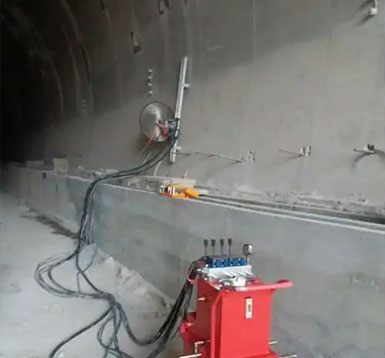

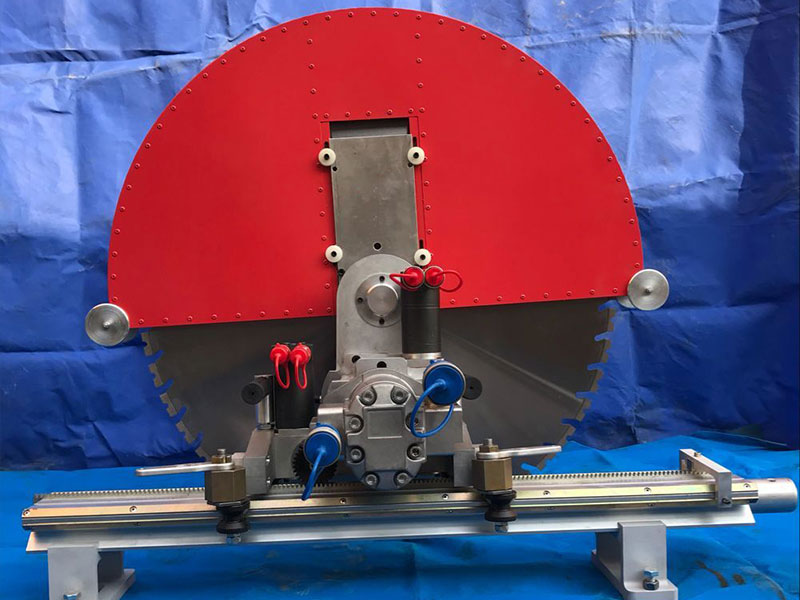

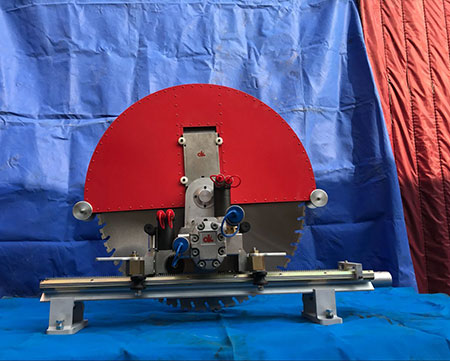

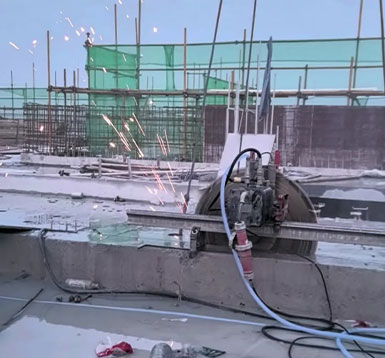

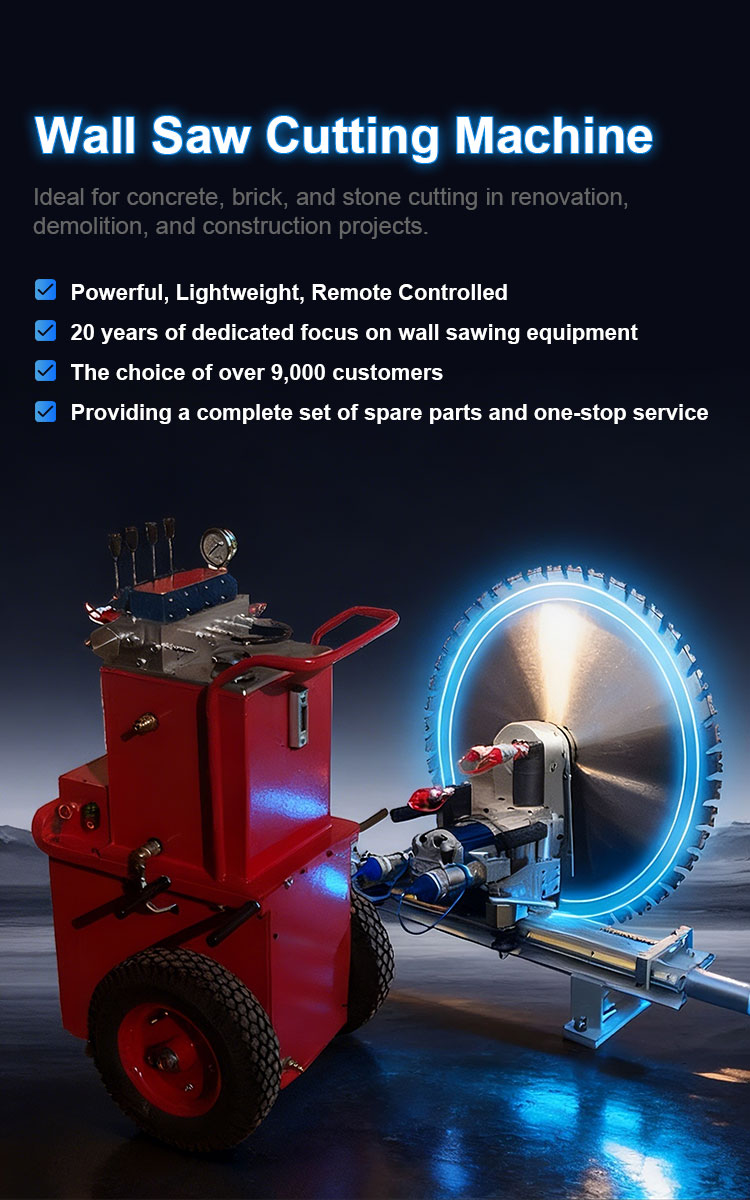

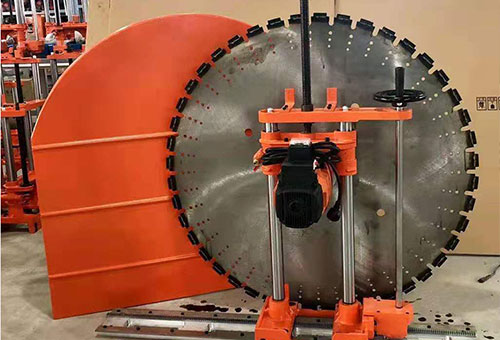

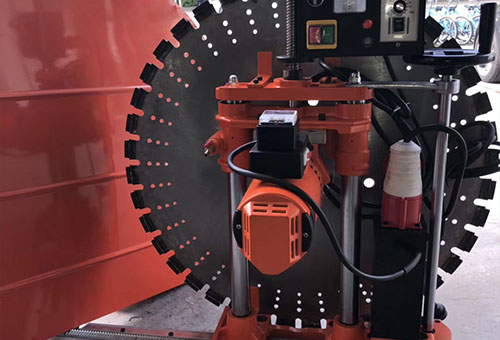

Wall SawOur wall saws are designed for efficient cutting of reinforced concrete, brick walls, and natural stone. Whether you need to create door openings, windows, elevator shafts, or modify existing structures, our machines deliver precision cuts without damaging the surrounding structure.The saws feature a split design for easy transport and one-person operation, combined with high power and low weight – filling the gap between heavy hydraulic systems and underpowered electric saws.
Send E-mail : supports@yugongmachine.com
Freely switchable between 380V/220V single-phase and three-phase voltages; Small size, lightweight, and easy to transport; lightweight yet powerful, highly adaptable;
High torque, strong overload protection, stable operation, supports large diameter saw blades (up to φ1600), and greater cutting depth;

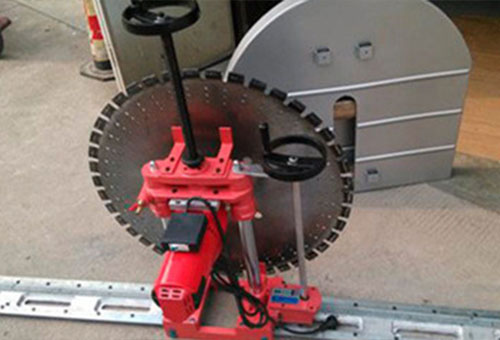

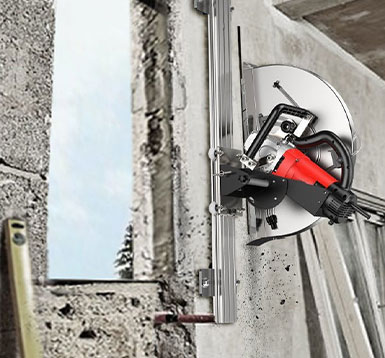

Precision guide rails—support vertical, horizontal, and top-mounted installation. Ensures a smooth cut and minimizes subsequent processing work.
High speed, fast cutting, and highly portable, suitable for projects with confined spaces and frequent site changes; installation and operation can be completed by a single person.

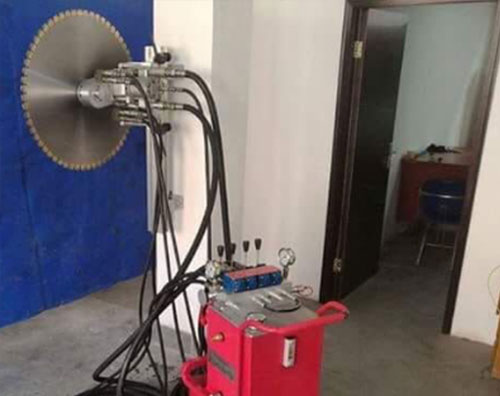

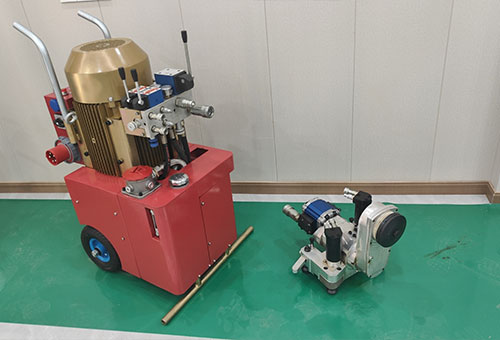

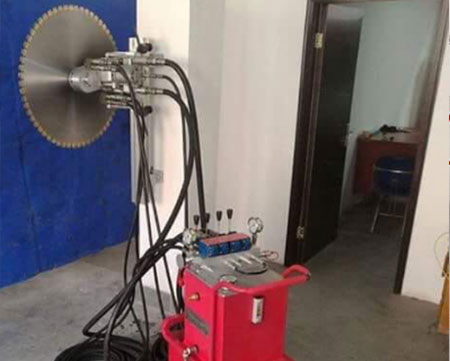

| Hydraulic wall saw models | 600TM | 700TM | 800TM |
| Max.power | Air cooling | water cooling | water cooling |
| Rated voltatge | 380V 50HZ 3phase | 380V 50HZ 3phase | 380V 50HZ 3phase |
| Pressure stages | 3 | 3 | 3 |
| Max.operating pressure | 200bar/20Mpa | 210bar/21Mpa | 210bar/20Mpa |
| Oil flow rate | 30-80L/min | 30-100L/min | 40-100L/min |
| Dimensions | 650mm*600mm*1150mm | 500mm*520mm*1100mm | 680*550*700mm |
| Weight | 180kg | 118kg | 120kg |
| Wireless remote control | |||
| Control voltage:24v | |||
| Dimensions(L*B**H):300*200*150mm | |||
| Weight:2kg | |||

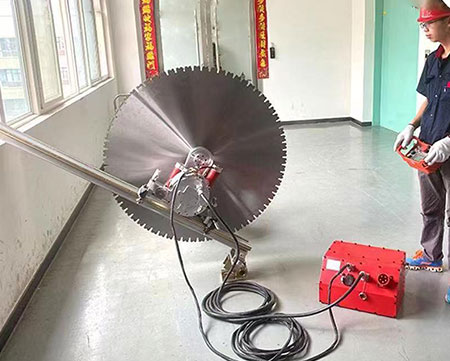

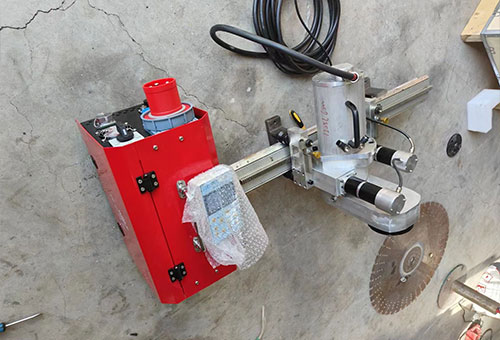

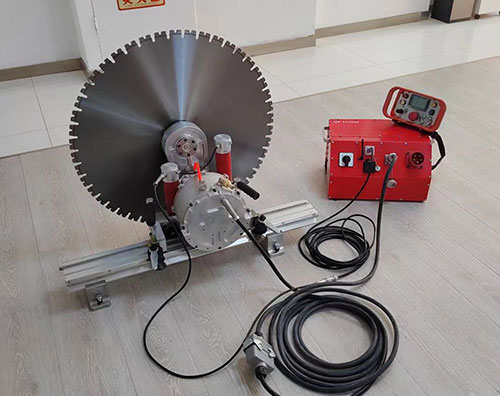

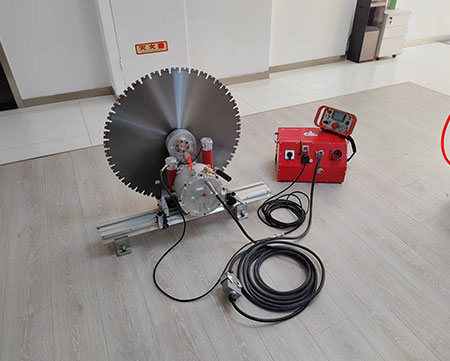

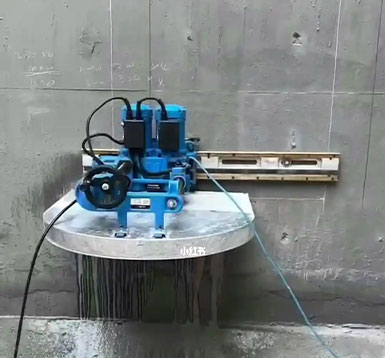

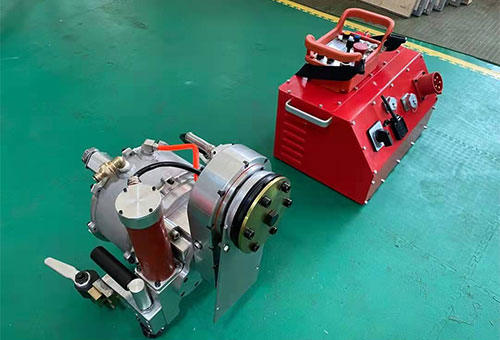

| High Frequency Wall Saw Module | Parameter | 9KW Model | 16KW Model |
| Cutting Head | Maximum Cutting Depth | 510mm | 510mm |
| Rated Power | 9KW | 16KW | |
| Compatible Blade Diameter | 600 ~ 1200mm | 600 ~ 1200mm | |
| Cutting Angle | 0-90ﾂｰ adjustable | 0-90ﾂｰ adjustable | |
| Head Weight | 38kg | 42kg | |
| Remote Control | Control Type | Wireless | Wireless |
| Effective Range | ≤300cm | ≤300cm | |
| Remote Weight | 1kg | 1kg | |
| Control Unit | Input Voltage | 220V / 380V Universal | 220V / 380V Universal |
| Unit Weight | 17kg | 17kg | |
| Built-in Protection | Overload, Overcurrent, Phase Loss | Overload, Overcurrent, Phase Loss | |
Preserves structural integrity, saving time, labor, and costs.
High-power motor for hard materials, global voltage options available.

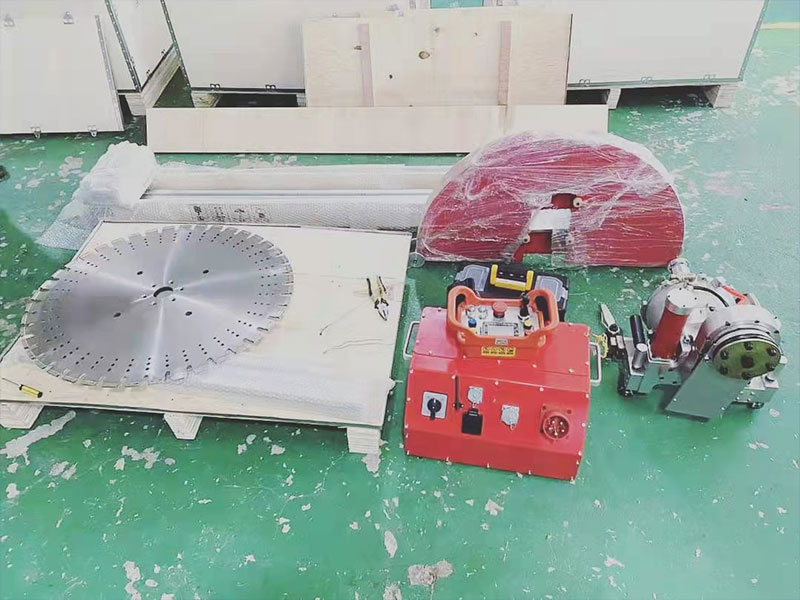

Modular design, fits into standard vehicles.
Single blade life up to 20 square meters (export quality).
Henan Yugong Machinery Co., Ltd., established in 2005, boasts 20 years of industry experience, over 500 employees, and an 80,000 square meter modern factory. Yugong holds registered trademarks such as "Yugong Machinery" and is certified by ISO International Quality Management System, National AAA Integrity Enterprise, and SGS International Certification. The company employs professional product development and pre-sales and after-sales personnel. With its superior products and services, the company has earned the trust and recognition of over 2,000 customers, and its products are exported to over 100 countries and regions worldwide. Yugong always adheres to the customer-first principle, ensuring every customer receives satisfactory products and services.
